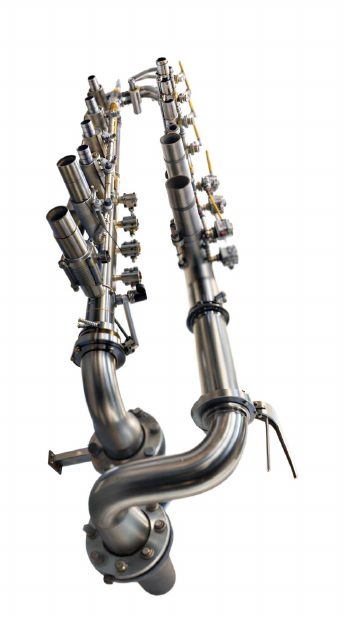

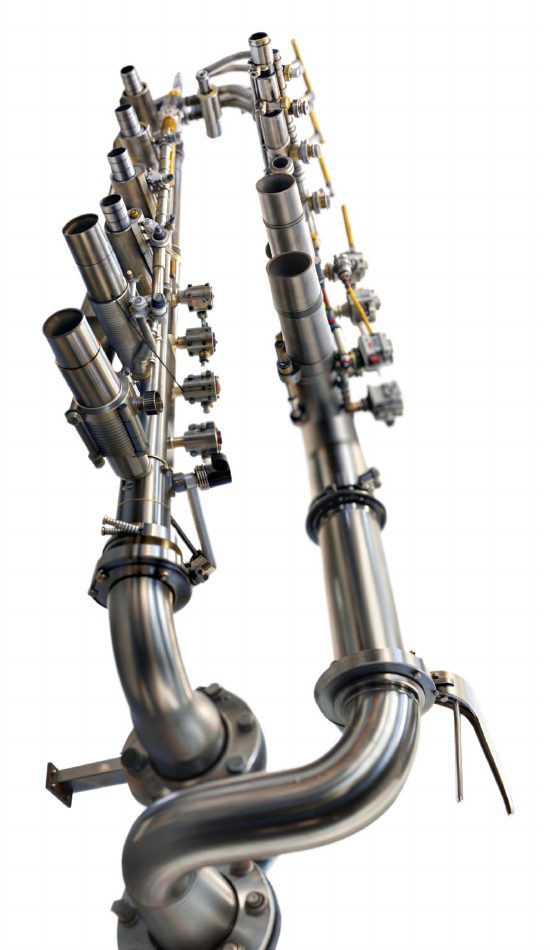

Liquid Cooling Piping Network
Prefabricated stainless steel
This is where GPTECH started. Twenty years of stainless steel valve and pipe fabrication for semiconductor and high-purity service, now aimed at data centre liquid cooling: pipework cut, welded, polished, cleaned and pressure-tested in the plant, then delivered to site as numbered spools that bolt together in hours instead of weeks.
-
Prefabricated off-site
Spools are cut, welded and tested in the plant. Site work becomes assembly, not fabrication.
-
Orbital welded, EP finished
Polysoude and Orbitalum automatic welders; high-precision electrolytic polishing for internal cleanliness.
-
Seven connection methods
Double crimping, threaded, quick, groove, flange, butt weld and socket weld.
-
100 % pressure tested
Every spool is helium leak or hydrostatically tested before it leaves the factory.
Technical specifications
| Material | SS304 / SS316L, EP or BA finish |
|---|---|
| Pipe size | DN15 – DN300 |
| Design pressure | Up to 2.5 MPa |
| Cleanliness | Class 1000 / Class 100 assembly |
| Connection | Crimp, thread, quick, groove, flange, butt & socket weld |
| Testing | Helium leak / hydrostatic, 100 % |
Specifications are indicative and configured per project. Contact us for a certified datasheet.
